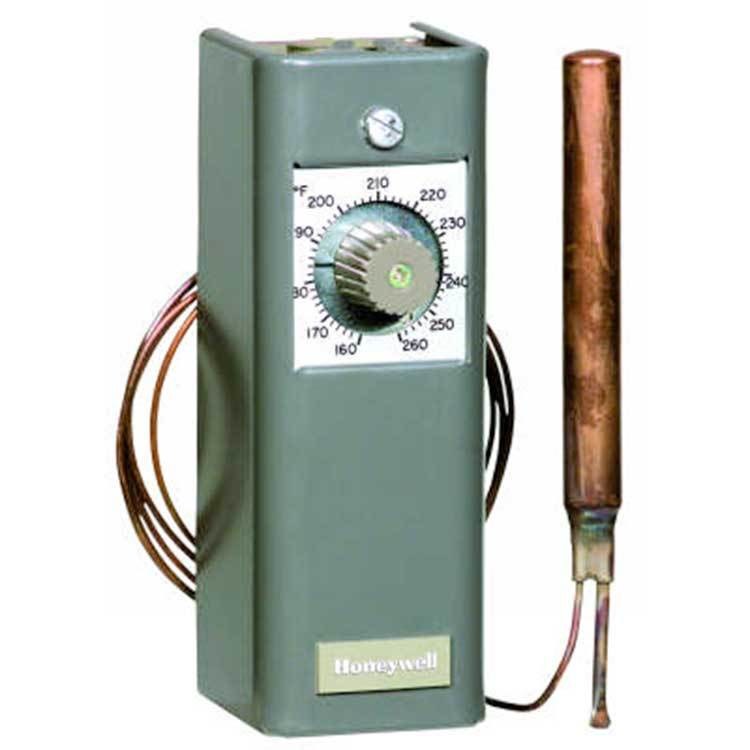

Temperature Controller

Honeywell T991A1194/U

Temperature Controller Modulating Remote Bulb with 20FT Capillary 24-30 Volt 55-175 Degrees Fahrenheit 5-5/8 x 2 x 2-1/4 Inch for Proportional Control of Temperature in Ducts Tanks Pipes

Authorized Distributor

$900.00  / ea
Qty
Not available in your location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Proportional (135 ohm) remote bulb controllers for modulating control of water or air temperature in ducts, tanks and similar applications.

  • Fast response models (for duct mounting) have coiled sensing element giving at least four times faster response than standard model
  • Ambient temperature compensated for the case and tubing
  • Sensing element capillary tubing allows remote mounting of sensing element
  • Setpoint may be read and adjusted through cover
  • Throttling dial inside case adjusts proportional throttling range
  • 20 ft L capillary
  • (1) 135 Ohm potentiometer analog output
  • 1 input copper bulb sensor element
  • 200 deg F operating temperature

BrandHoneywell
Product TypeModulating Remote Bulb with 20FT Capillary
Voltage24-30V
Temperature55-175DEG F
Size5-5/8x2x2-1/4IN
ApplicationProportional Control of Temperature in Ducts, Tanks, Pipes
Length2-1/4IN
Width2IN
Height5-5/8IN
Shipping Weight3.000 LBS
