Flame Detector

Resideo C554A1463/U

Flame Detector C554A Cadmium Sulfide 60 Inch Lead for R4166 R4184 R8182 R8184 R8185 R8404 R8991 and R7997 1 Inch 1/2 Inch

Authorized Distributor

$53.69  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

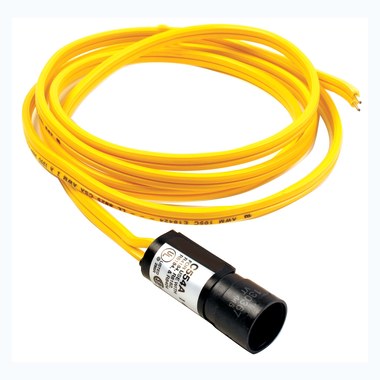

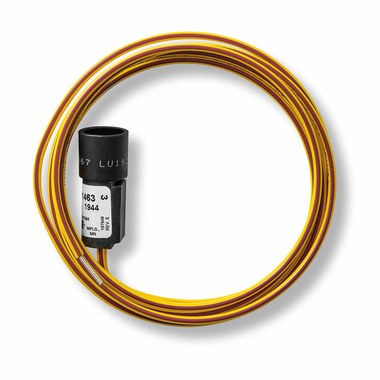

Photoconductive flame sensing device for sequencing oil burner systems.

  • On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay control to shutdown the main oil burner
  • Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes
  • Replaceable CAD cell

BrandResideo
Product TypeCadmium Sulfide 60IN Lead
Used onR4166, R4184, R8182, R8184, R8185, R8404, R8991, and R7997
Length1IN
Width1/2IN
Height1-7/8IN
Shipping Weight3.000 LBS
