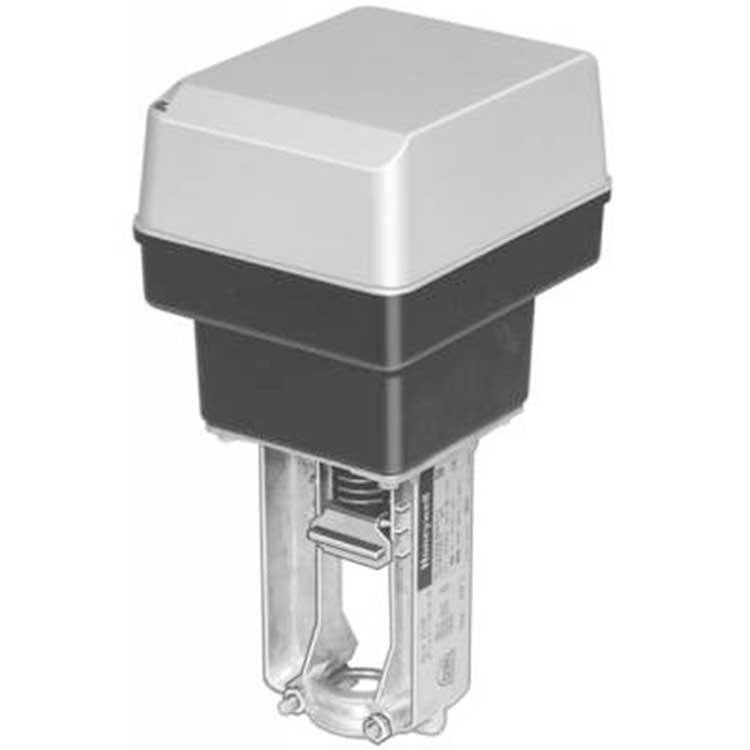

The ML6425 Spring Return Electric Linear Valve Actuators are floating control actuators used with controllers that provide a switched or floating single-pole double-throw (SPDT) output. These actuators operate standard Honeywell valves in heating, ventilating and air conditioning (HVAC) applications. The ML7425 Spring Return Electric Linear Valve Actuators are modulating control actuators used with controllers that provide an analog output of 0 to 10 VDC or 2 to 10 VDC. These actuators operate standard Honeywell valves in heating, ventilating and air conditioning (HVAC) applications. An internal selector can be used to reverse the direction of action.
| Brand | Honeywell |
|---|---|
| Product Type | High Capacity |
| Style | Spring Return Stem Up |
| Mounting | Globe Direct Coupled |
| Voltage | 24V |
| Frequency | 50/60Hz |
| Stroke Length | 3/4IN |
| Torque Rating | 135IN LB |
| Size | 11-1/4x5-5/16x6-5/16IN |
| Temperature | 14-122DEG F |
| Application | HVAC Systems |
| Shipping Weight | 5.810 LBS |
