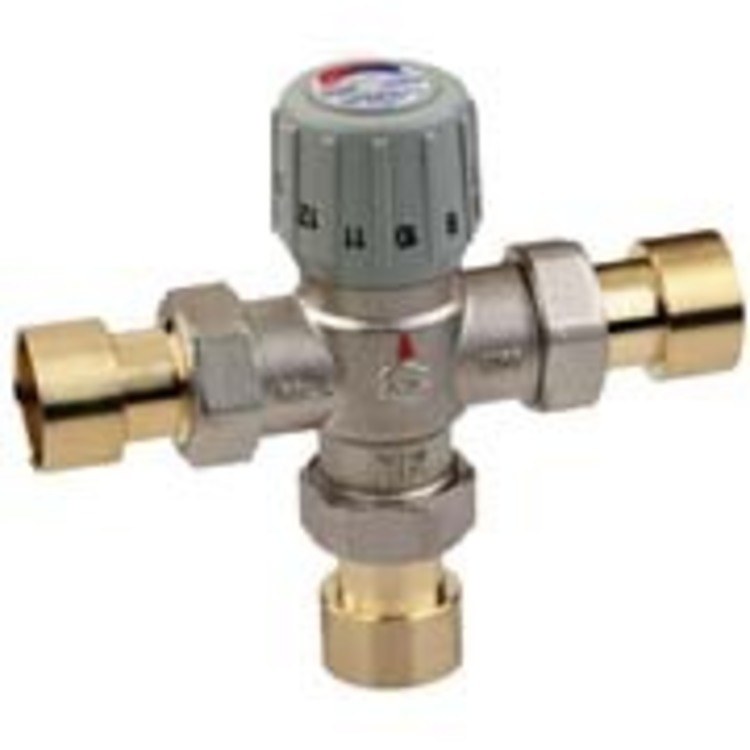

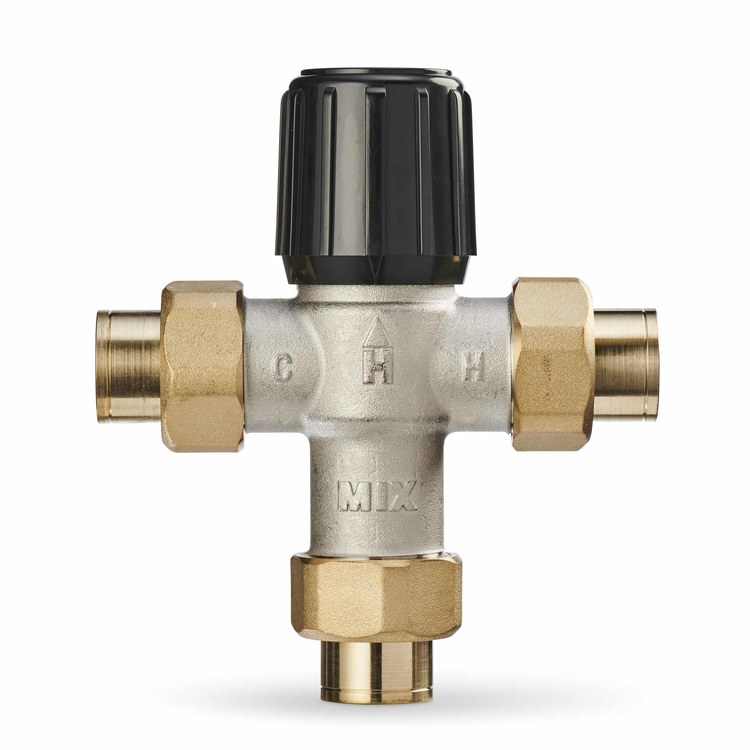

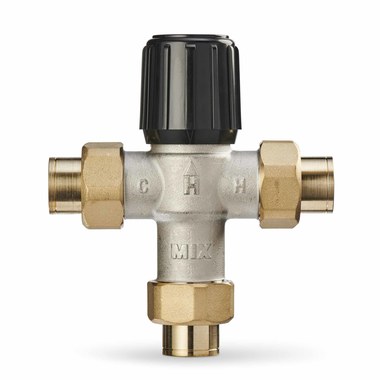

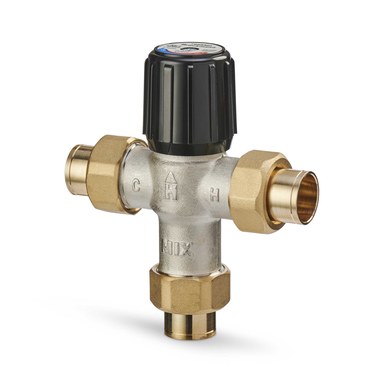

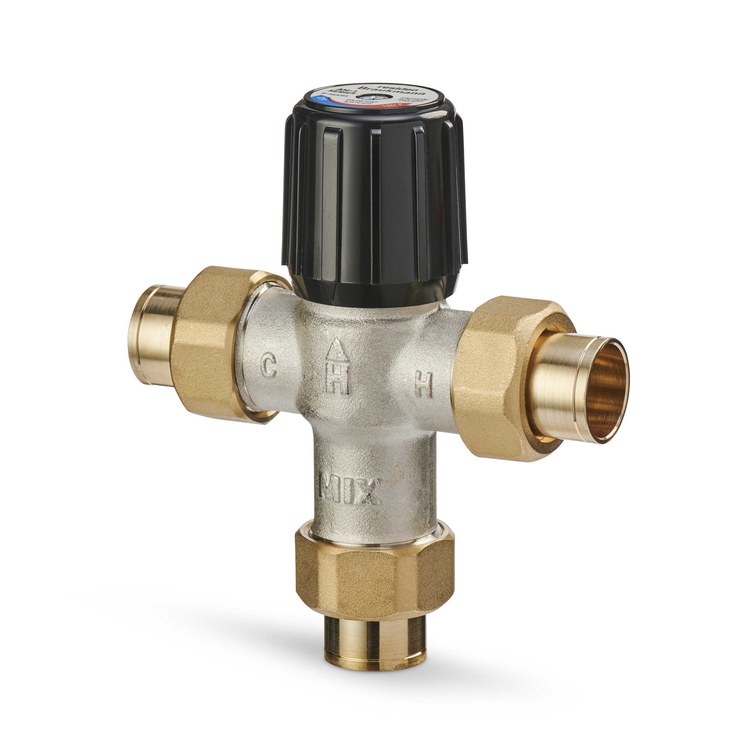

Mixing Valve AM-1R Proportional 3/4 Inch Nickel Plated Brass Union Sweat EPDM 150 Pounds per Square Inch

Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.

• Features dual purpose mixing or diverting values
• Offers constant water temperature under changing operating conditions
• Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
• Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
• Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
• Tamper resistant design with nickel plated brass construction and EPDM o-rings
• Designed for easy maintenance and Teflon coating prevents mineral build-up and extends life
• Lead free products have products numbers end in LF
• Teflon coated, nickel plated brass/bronze body
• Teflon coated brass shuttle
