Burner Control Oil Relay Primary with 15 Second Lockout for 4x4 Inch Junction Box or Direct Mount on Burner Housing

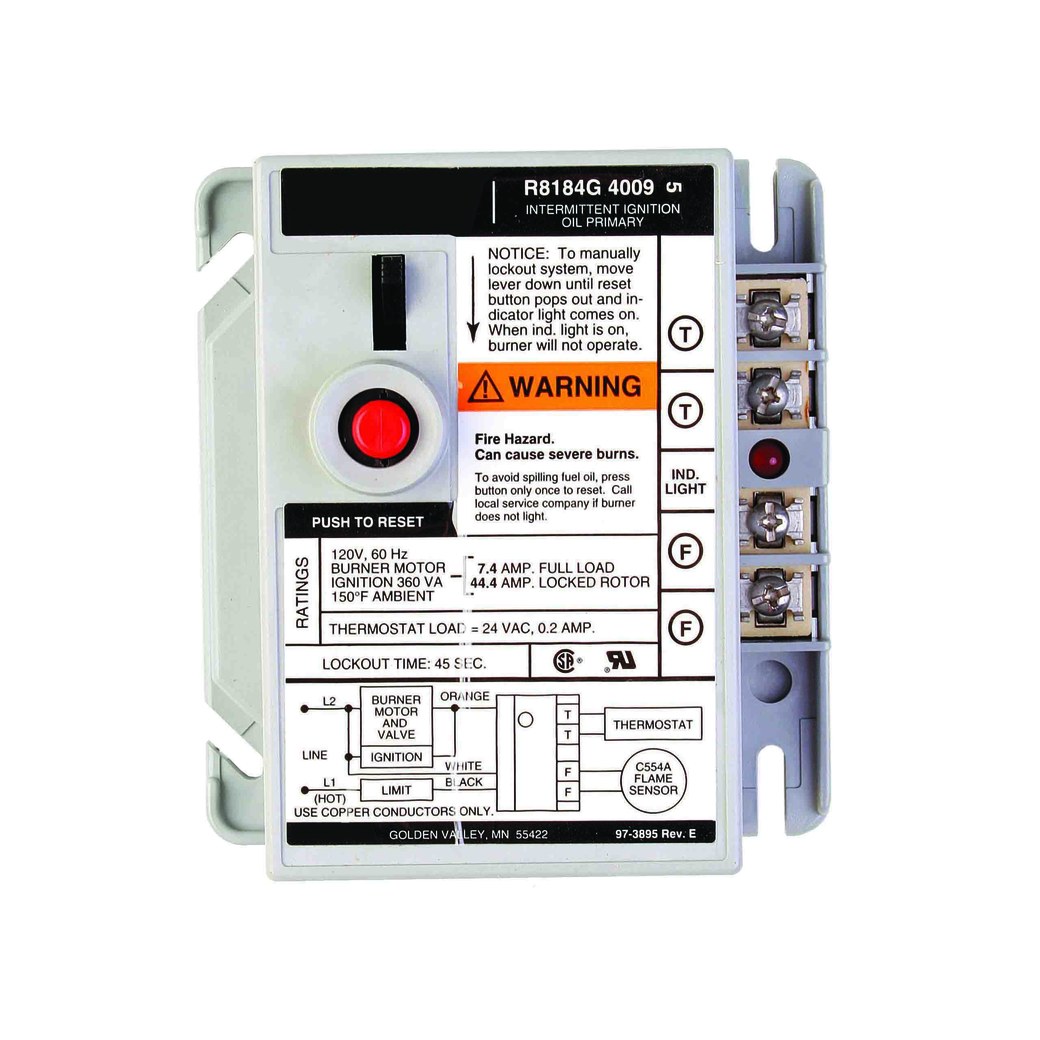

The TRADELINE intermittent ignition oil primary control operates the oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat from the thermostat. Through a C554 Cad Cell Flame Sensor, the R8184 monitors the burner flame and shuts down the system on ignition failure or on flame failure during the run cycle. A light emitting diode (LED) on the terminal strip lights when the safety switch opens to provide safety shutdown indication. A manual reset button is provided to reset the safety switch after lockout. For convenience in system maintenance, the safety switch can be manually opened using a lever on the front of the control. Clock thermostats that power the clock through the primary control transformer will lose time during lockout unless backup batteries are installed.

• Provides automatic, no recycling control of an intermittent ignition oil burner system
• Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• LED on terminal strip indicates system lockout
• Remote lockout indication (available on some models)
• Enclosed safety switch with external reset button
• Manual trip lever opens safety switch for system maintenance
• Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
• C554A cadmium sulfide flame detector and 24 VAC thermostat required
• 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
