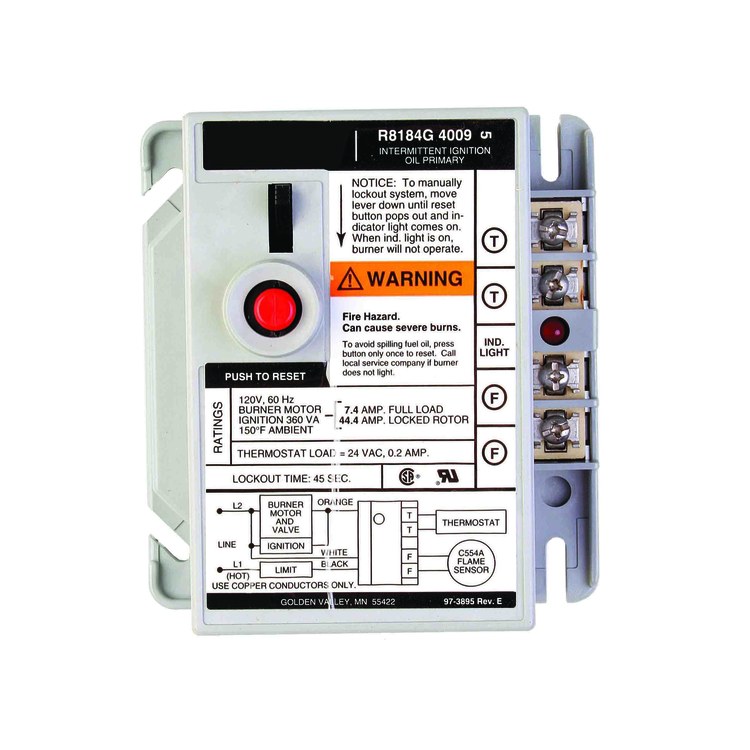

Burner Control Relay Primary with 45 Second Safety Switch for 4x4 Inch Junction Box or Direct Mount on Burner Housing

Provides automatic, non-recycling control of an intermittent ignition oil burner system.

• Controls oil burner, oil valve and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• Enclosed safety switch with external reset button
• Manual trip lever opens safety switch for system maintenance
• Mounts on standard 4 x 4 in junction box, select models may be mounted directly on burner housing
• C554A cadmium sulfide flame detector and 24 VAC thermostat required
• LED for lockout indication and manual trip lever on safety switch to assure burner shutdown during servicing
• Mounting on a standard 4 in x 4 in junction box or direct mounting on burner housing
• 45 sec safety switch
• Electrical ratings: 44.4 A at 120 VAC, 22.2 A at 240 VAC locked rotor
• 75 VA at 120/240 VAC, 50 to 60 Hz pilot duty alarm load ratings, 25 VA at 24V, 50 to 60 Hz pilot duty alarm load ratings
• 1.5 A at 120/240V, 50 to 60 Hz resistive alarm load ratings, 3 A at 24 V, 50 to 60 Hz resistive alarm load ratings
