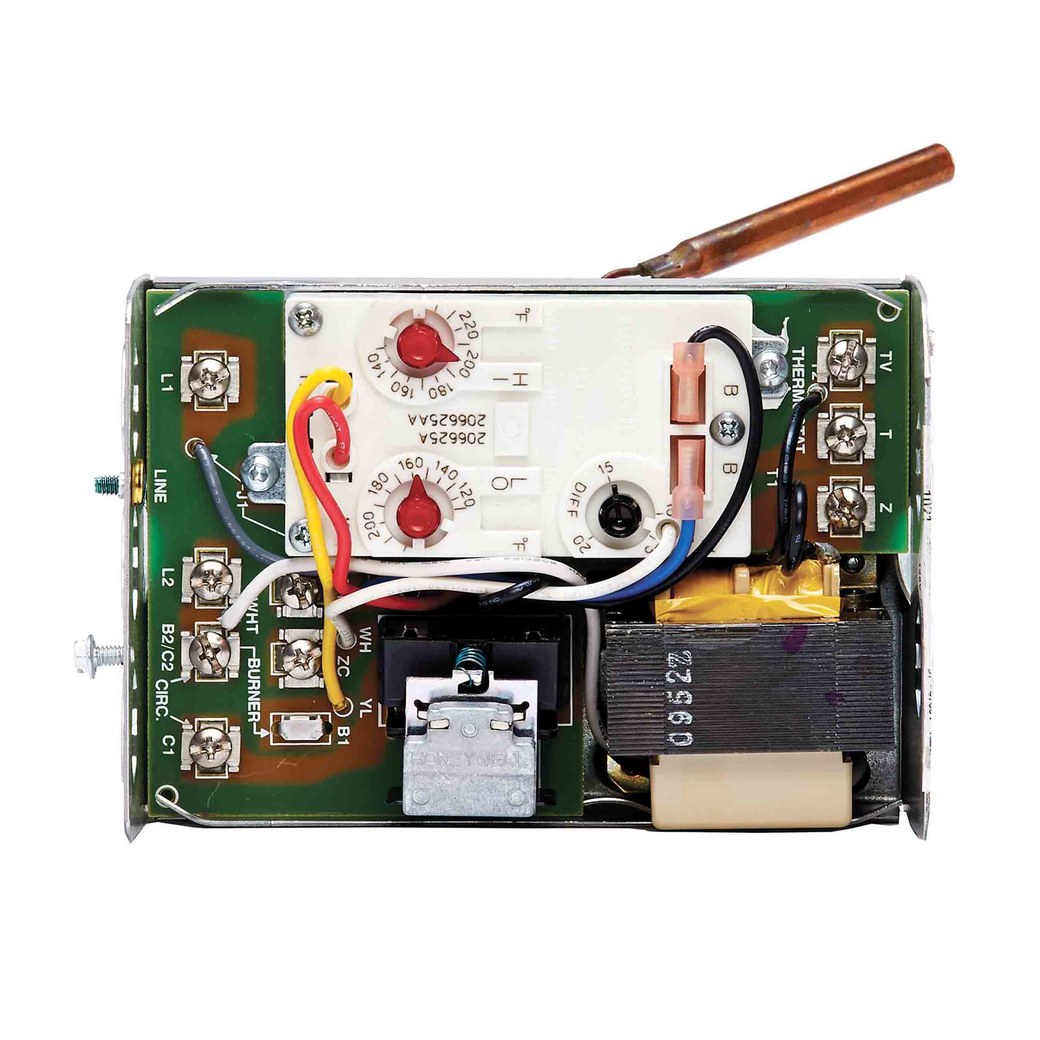

Aquastat Triple Quick Connect 130-240 Degrees Fahrenheit High Limit 10F Fixed Low Limit 10-25F Adjustable Horizontal

Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.

• Immersion type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
• Provide multizone control by using a separate circulator and R845 Relay for each zone
• Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
• Mount directly to boiler
• Select models include large transformers and extra terminals for supplying power to low voltage zone valves
• Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valves on L8124E)
• TRADELINE models include tube of heat conductive compound and range stops
• 0 to 95% RH non-condensing
