Urinal

Sloan SU-1009A

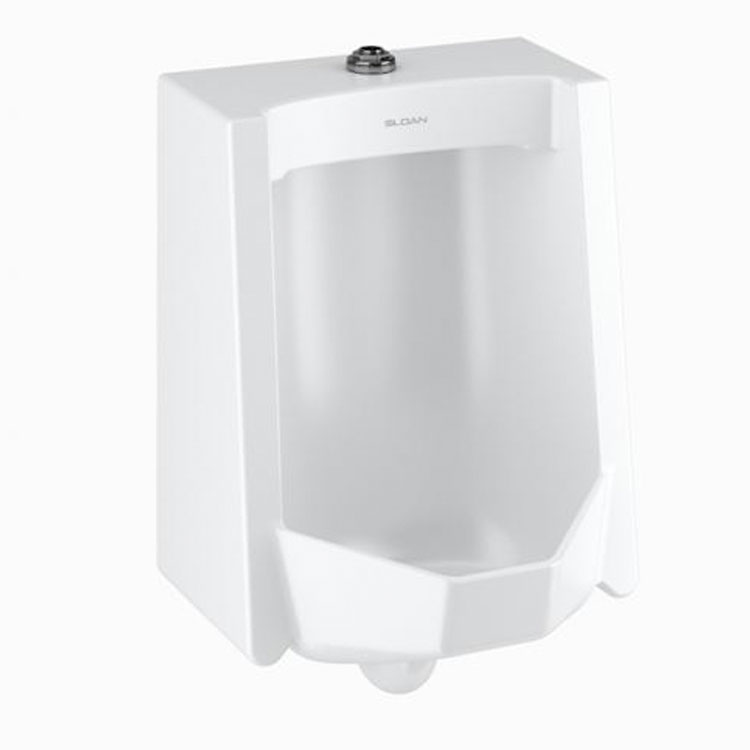

SU-1009 Wall-Mount Top Spud Washdown Vitreous China Urinal - White

Authorized Distributor

$256.82  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Universal High-Efficient Wall-Mount Urinal.

This Sloan wall-mounted urinal is designed to maximize and complement Sloan flushometers. The universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers. The urinal features durable, hygienic vitreous china construction with a white finish, washdown flushing action, and a 3/4" top spud.
  • Flush Volume: 0.125 - 1.0 gpf (0.5 - 3.8 Lpf)
  • Flush volume determined by the flushometer used with the fixture
  • Nominal Dimensions: 14-1/4" x 17-1/4" x 25-1/2"
  • Material: Vitreous china
  • Finish: White
  • Washdown flushing action
  • Integral flushing rim
  • 3/4" I.P.S. top spud inlet
  • 2" NPT outlet flange
  • Vandal-resistant strainer assembly included
  • 100% factory flush tested
  • All mounting hardware included
  • IAPMO certified to meet or exceed ASME A112.19.2 standards
  • Water Sense listed by EPA that qualifies for most rebate programs
  • Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

BrandSloan
FinishWhite
Spud TypeTop
Spud Size3/4IN
Product TypeStandard Washdown SU1009A
ADA CompliantYes
MaterialVitreous China
Size14-1/4x17-1/4x25-1/2IN
MountingWall
Shipping Weight71.000 LBS
