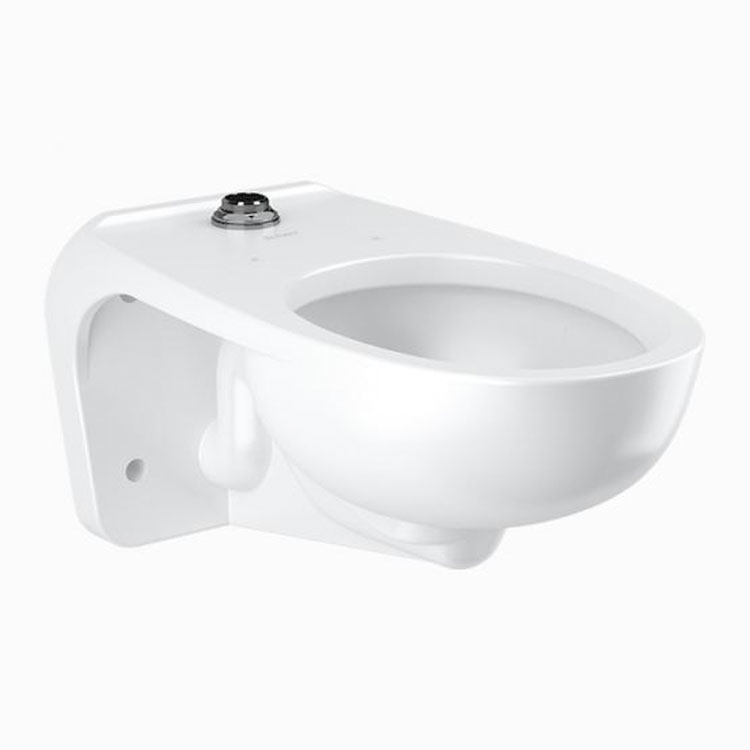

Elongated Wall-Hung ADA Top Spud Vitreous China Toilet Bowl Only - White

Engineered for Commercial Restroom Performance.

This Sloan elongated wall-mount, ADA-compliant toilet bowl is designed to maximize and complement Sloan flushometers. Its top spud design works with Sloan flushometers from 1.1 to 1.6 gpf. The toilet bowl mounts to the wall for easy cleaning and space savings, and features durable, hygienic vitreous china construction with an elongated rim, wall outlet, and white finish. Its Syphonjet flushing achieves 1000g Map Scores when used with Sloan flushometers. The toilet bowl is IAPMO certified to meet or exceed ASME A112.19.2 standards and is WaterSense compliant when used with a WaterSense compliant flushometer. Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly.

• Nominal Dimensions: 26-3/4" L x 15" W x 13-1/4" H
• Rim Height: 13-1/4" - 17"
• Material: Vitreous china
• Finish: White
• Flush Volume: 1.1 - 1.6 gpf (4.2 - 6.0 Lpf) (Flush volume determined by the flushometer used)
• Wall mounted, wall outlet
• Siphon jet flushing action achieves 1000g Map score when used with any Sloan flushometer
• 1-1/2" I.P.S. top spud inlet
• 2-1/8" fully glazed trapway
• Closet bolts and caps included
• Toilet seat not included
• Minimum Flowing Pressure: 25 PSI (172 kPa)
• Maximum Static Pressure: 80 PSI (552 kPa)
• Minimum Flow Rate: 25 gpm (95 Lpm)
• Static load rating of 750 lbs.
