Ball Valve

Webstone 41672

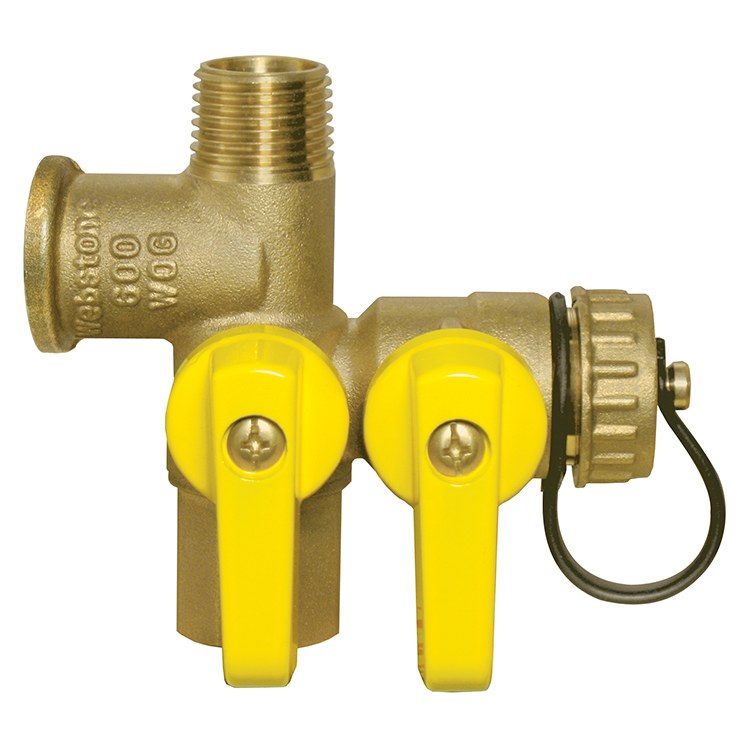

Pro-Pal 4167 Series Expansion Tank 1/2" Pro Service Valve with FIP x MIP x FIP x Hose

Authorized Distributor

$74.55  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Designed for Residential or Light Commercial Use with Water or Oil

The Pro-Pal 4167 Series Expansion Tank Pro Service Valve isolates and drains an expansion tank in a closed loop hydronic heating system. A blowout-proof stem actuates the valve, which features an adjustable packing gland. Lets you easily install, isolate, drain and replace any expansion tank, and quickly connect the entire system to the cold water feed. The valve replaces five components to save you up to 36 minutes in installation and repair time, while eliminating four leak paths.
  • Full port forged brass ball valve
  • Hi-flow hose drain
  • Maximum operating pressure: 600 CWP
  • Body: brass
  • Seat: PTFE
  • Handle: enamel-coated aluminum
  • Threaded ends comply with ANSI B1.20.1.
  • Certified to NSF/ANSI 61

BrandWebstone
Size1/2IN
End ConnectionFemale x Male x Female x Hose
MaterialBrass
Port TypeFull Port
Pressure600WOG-PSI
Seal MaterialPTFE
Temperature350DEG F
End to End Distance3-3/8IN
ApplicationResidential or Light Commercial Use with Water or Oil
Shipping Weight3.000 LBS
